Range of Diesel Gensets

Gensets - Diesel and Gas Gensets

750 KVA
Diesel generator set V38 series

Reliable and durable
Cummins Sudhir ® ‘K series’ diesel engine with strong regrindable crankshaft, high strength connecting rod, low pressure fuel lines, STC (Step Timing Controls) injectors and high volume coolant system make ‘K38 series’ generating sets, more reliable and durable. Engines have clocked millions of hours, operating on some of the world’s most demanding conditions. Current engines are upgraded with new technologies for more performance and economy. The ultimate proof of superior performance and reliability is the fact that Cummins Sudhir ® entities itself source these engines from Cummins Sudhir India for their worldwide market.

Unmatched warranty
Cummins Sudhir ® ‘K series’ diesel engine generating sets are a truly cost effective solution to long term power need backed by industry best 2 years / 5000hrs warranty for the entire generating set.

Cummins Sudhir advantage
Special features of Cummins Sudhir ® ‘K series’ engines like STC (Step Timing Controls) injectors, low temperature aftercooler, square cumbustion chamber, optimised turbocharging and precision heavy duty camshaft make these engines the ultimate in exceptional fuel efficiency all across the operating range.

Alternator
Stamford brushless AC alternator
Seperately excited, self-regulated
Class ‘H’ insulation
Salient pole revolving field
Single / double bearing
Automatic voltage regulator
PMG standard

Accessories
Silencer suitably optimized to reduce noise
Sturdy base rail
990 ltrs. free standing fuel tank
4 x 12 V dry, uncharged batteries with connecting leads and terminals

Control panel
Powder coated control panel manufactured with 14/16 gauge CRCA sheet and provides
ACB of suitable rating with overload and short circuit protection
Voltmeter and ammeter with selector switch
KW/PF meters
Frequency meter
KWh meter
Indicating lamps for “Load On” and “Set Running”
Current transformers
Aluminium busbars of suitable capacity with incoming and outgoing terminations
Instrument fuses duly wired and ferruled

Optionals

Engine
Heavy duty air cleaner, lube oil/coolant heater with thermostatic switch

Alternator
Space heater, RTDs, BTDs

Control panel
AMF control panel, battery charger, remote/auto start panel, auto/ manual synchronizing panel, audio/visual annunciation for faults Power Command® Genset Controls The Power Command® Control, is a micro processor based generator set monitoring, metering, protection and control system. It offers advanced levels of functions for reliability and optimum genset performance. An extensive array of integrated standard control and digital display features eliminate the need for discrete component devices such as the voltage regulator, governor control and protective relays. The control system has easy servicing capabilities that allow system parameters to be interrogated, monitored and adjusted with a PC.

Specification sheet 600-808 kWe, 750-1010 kVA Prime

Single source power assurance

Design, manufacture and testing of engine, alternator, enclosure and other accessories is done by Cummins Sudhir India/ Channel partners (Powerica Limited) for that optimum performance integrity and is backed by countrywide product support network with single source responsibility for the entire package.

Standard scope
Engine: Cummins Sudhir ® ‘K series’ direct injection, water cooled engine, 12 cylinder, 4 stroke, rated at 1500 RPM, conforming to ISO 3046/BS 5514 has the following specifications:

The scope of supply includes:
Cummins PT fuel pump
Cummins STC injectors (for 1010 kVA rating)
Holset turbocharger, pulse tuned exhaust manifold, stainless steel exhaust flexible connections
Radiator or heat exchanger, coolant inhibitor,
Plate type lube oil cooler
Outboard aftercoolers
Full flow paper element filters - fuel, lube oil and by-pass
Dry type replaceable paper element air cleaner with restriction indicator
Flywheel housing & flywheel to suit single/double bearing alternator
Flexible coupling for double bearing alternator
Starting motor – Electric, battery charging alternator
Electronic control panel
Cummins Electronic Governor (EFC)
Engine protections (trip)
High water temperature
Low lube oil pressure
Overspeed
Low coolant oil level (alarm)
First fill lube oil

Features
Digital governing
Digital voltage regulation

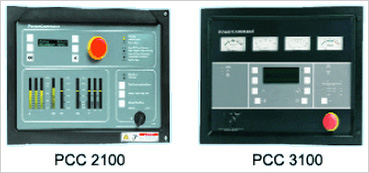

Amp Sentry TM protection for true alternator O/C protection on PCC 2100/3100 for solo/paralleling applications
Analog/ bargraph/digital AC output metering
Battery monitoring system to sense and warn against a weak battery condition
Digital alarm and status message display
Genset monitoring : Displays status of all critical engine and generator set functions
Smart starting control system : Integrated fuel ramping to limit black smoke and frequency overshoot
Power Command ® network capability (optional)

Power Command® Paralleling Genset Controls
In addition to the features described above, the Power Command® control with digital paralleling features eliminates the need for separate paralleling control devices such as synchronizers and load sharing controls, and KVAR/power factor controls. Besides this, features like synchronizing*, including import/ export controls for paralleling with an infinite (utility/ mains) bus and the ability to control the load on the generator set when paralleled with utility or mains are also built into the Power Command® control.

* For utility synchronizing applications, please contact your local Cummins® distributor.
